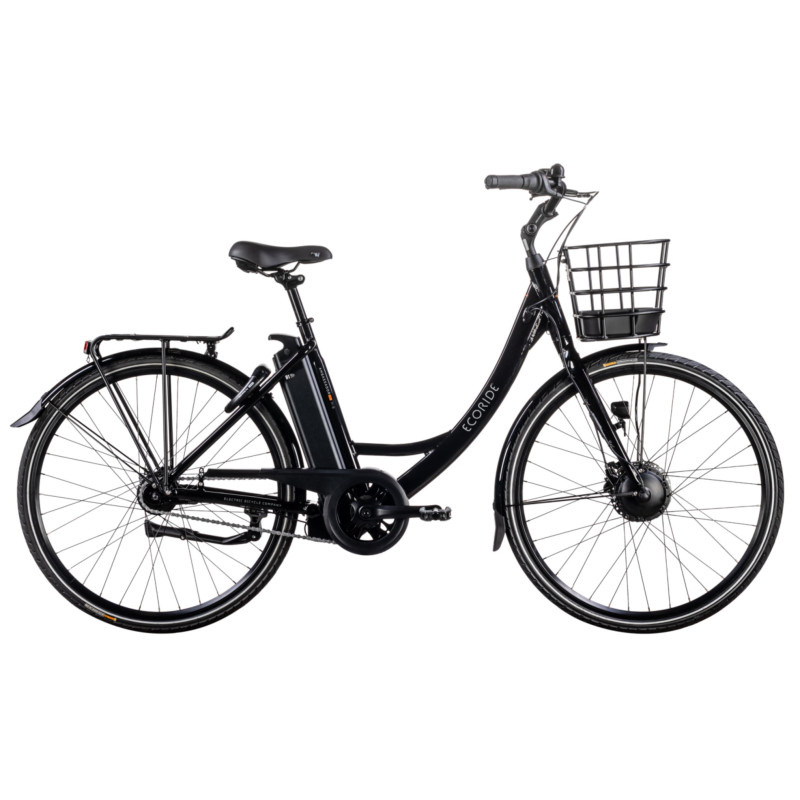

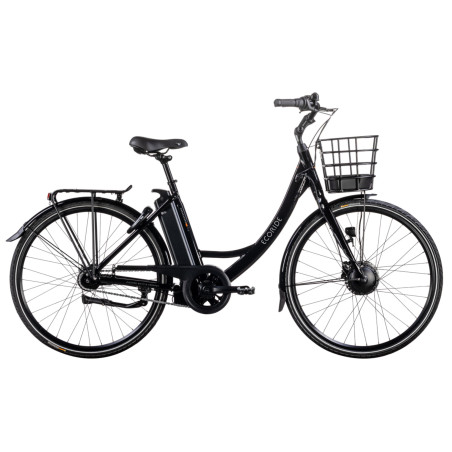

Ecoride Ambassador Gen3 7-vxl

Komfortabel och användarvänlig 7-växlad elcykel med lågt insteg
Ambassador AXS H-7 är en klassisk, pålitligt och funktionell 7-växlad elcykel anpassad för vårt nordiska klimat.

Lågt insteg för enkel på- och avstigning. Utrustad med Ecoride Drive System med navmotor i framhjulet, färgdisplay och ett kraftfullt batteri på 14.4 Ah. Korg fram och AVS-plattform bak löser lastningsbehoven.

✓ Antal växlar: 7
✓ Färger: Svart, Röd
✓ Assistanslägen: 5 (off, low, mid, high, power)
✓ Cykelram: Lågt insteg
✓ Cykelstorlek: 28 tum (cyklistlängd 165-195 cm)
✓ Broms: Fotbroms, Shimano skivbroms fram
✓ Elsystem: Ecoride Drive System
✓ Motor: Hubmotor framhjul, 250 Watt
✓ Räckvidd på laddning: 40-85 km
✓ Garanti: 2 år (3 år om genomförd godkänd service)

-------------------

Specifikation - Ambassador Hub Gen3

SADEL / STOLPE  ​ ​238ZBK0001  ​ ​Promax, Seatpost clamp, MX-27-31.8mm, Rust protected screw, Black

​ ​ ​ ​238STN300BK0001  ​SEATPOST - TILTABLE - 30cm - Black

​ ​ ​ ​238ZBK0008  ​ ​SEATPOST PART - SCREW KIT - for saddle attachment

​ ​ ​ ​238SSRBK0018  ​ ​SADDLE - STANDARD - Selle Royal, Freeway

PAKETHÅLLARE / KORG  ​204ZBK0007  ​ ​BASKET SUPPORT - STANDARD - 34cm

​ ​ ​ ​271-PSNW6191  ​ ​BASKET PART - SCREW KIT for front basket

​ ​ ​ ​204BBK0017  ​ ​BASKET FRONT - STANDARD - (2018-2024 + Gen3) Black

​ ​ ​ ​203CR375BK0001  ​ ​AVS, 1483-7-375, TOUR LITE 28" AVS H375, w/o EXT, MATT BLACK

HJUL GENERELLT  ​ ​228TO28BK0001  ​ ​TIRE 28" - KENDA 700*40C - BLACK

​ ​ ​ ​227RD2814BK0003  ​RIM 28 - 14G - BUCHEL DYNAMIC 3 - 4.5mm nipple hole - BLACK

​ ​ ​ ​226N14SI0003  ​ ​Nuts Buchel nipple 14G, Länge 14mm, body size 3.8mm, silver

HJUL FRAM  ​ ​ ​591WMER28BK0004  ​MOTOR WHEEL FRONT 28 - F40 - 110mm - BLACK

​ ​ ​ ​211SPZSI0023  ​ ​MOTOR INSERT - F40 - 28" 110mm

​ ​ ​ ​211SPZSI0020  ​ ​PLANET GEAR - F40/F3/R1 Helical cut (31T) - DGWH2

​ ​ ​ ​211-MP1429-1228-8  ​MOTOR BEARING - 6001RS - 12/28/8mm

​ ​ ​ ​407-AT9897  ​ ​ ​KLUBER AG 11-462 - Grease for hubmotor 450g

​ ​ ​ ​211-MP1480  ​ ​MOTOR AXLE PART - NUT FRONT

​ ​ ​ ​211-MP1582-S7  ​ ​MOTOR AXLE PART - NON TURN WASHER 20mm

​ ​ ​ ​211-MP1583-S7  ​ ​MOTOR AXLE PART - WASHER (FRONT) - 18-12-2mm

​ ​ ​ ​211-MP1590-S7  ​ ​Brass washer - shim - ST - S7 (12-16mm)

​ ​ ​ ​211-MP1485  ​ ​MOTOR AXLE PART - RUBBER PROTECTOR FOR HUB NUT - Cable side

​ ​ ​ ​211-MP1486  ​ ​MOTOR AXLE PART - RUBBER PROTECTOR FOR HUB NUT - Non Cable side

​ ​ ​ ​226S1314254BK0001  ​Spokes Buchel Spoke ED L=254mm 13G/14G WH=6,4mm black

HJUL BAK  ​ ​ ​592WNMER28BK0008 ​WHEEL REAR 28 - NEXUS 7 (Coaster brake) - BLACK

​ ​ ​ ​226S1314281BK0002  ​Spokes Buchel Spoke ED L=281mm 13G/14G WH=6,4mm black

​ ​ ​ ​SHIMANO  ​ ​ ​INTERNAL HUB GEAR,SG-C3001-7C-DX, NEXUS, 7-SPEED, COASTER BRAKE, 36H, 127X176MM, BLACK,

​ ​ ​ ​SHIMANO  ​ ​ ​SPROCKET FOR INTERNAL HUB, 19T(2.3MM) SILVER(DX)

​ ​ ​ ​SHIMANO  ​ ​ ​COMPONENTS FOR SG-7C25/7C15,NEXUS, W/O GEAR & ARM CLIP, FOR STD TYPE END(7R/7L), CAP NUT, RIGHT DUST CAP, W/CJ-NX10

GAFFEL  ​ ​ ​202FR28BK210001  ​ ​FORK 28 - AMBASSADOR - F3 110mm - GLOSS BLACK

​ ​ ​ ​202FR28RD210001  ​FORK 28 - AMBASSADOR - F3 110mm - RED

​ ​ ​ ​202ZBK0004  ​ ​HEADSET BEARING SET - 1.125/1.125 - For threaded head set

ELCYKELTEKNIK  ​ ​210ER15ABK0001  ​ ​ECORIDE POWERPACK 530 - 36.9V 14.4Ah

​ ​ ​ ​210ERZBK0005  ​ ​BATTERY PART - BOTTOM - POWERPACK 576 - (ZZ609) ​ ​ ​ ​

​ ​ ​ ​213ER4ASEBK0001  ​ ​CHARGER PC4 - 4A 36V - Z311 plug

​ ​ ​ ​212ERC3BK0005  ​ ​DISPLAY C3.2 - 28" - UART for Gen3-bikes

​ ​ ​ ​212ERC3BK0003  ​ ​DISPLAY C3.1 - 28"

​ ​ ​ ​212ERBK0001  ​ ​DISPLAY CABLE - C1 C2 C3 - ROUND-ROUND

​ ​ ​ ​214ER15ASSI0046  ​ ​CONTROLLER BOX C3/C2 - 26-28" ( LSW1108-01-01E ) - For motors F3/R1

​ ​ ​ ​243S12BK0006  ​ ​SENSOR DISC - 12-MAG

​ ​ ​ ​243S12BK0007  ​ ​SENSOR - 12-MAG

​ ​ ​ ​211ERZSY0001  ​ ​MOTOR CABLE - STANDARD 125cm

​ ​ ​ ​241LFWO36BK0009  ​LIGHT FRONT - BUCHEL Shiny50 - 6-48V - Gen4

​ ​ ​ ​241LRWO36BK0006  ​LIGHT REAR - BUCHEL Edge - 6-48V (carrier mount) - Gen4/Gen3

​ ​ ​ ​241ZBK0019  ​ ​LIGHT CABLE - 130cm, with controller box connector

​ ​ ​ ​241ZBK0001  ​ ​LIGHT CABLE Y-connector for lights

STYRE / STEM  ​ ​230SNABK0002  ​ ​QUILL STEM - FOR THREADED HEADSET - Ø25.4 (for Ø25.4mm handlebar) - BLACK

​ ​ ​ ​231HZCBK0001  ​ ​HANDLEBAR COMFORT - 610mm - Ø25.4mm - BLACK

CYKELDELAR  ​ ​232BNA0001  ​ ​Buchel, Flexi Bell

​ ​ ​ ​239-PST6815-000  ​ ​Grips Black Herrmans (PAIR L123-R90)

​ ​ ​ ​247KS2BK0005  ​ ​KICKSTAND - Direct mount 40mm - 26/28" Black

​ ​ ​ ​246LNBK0014  ​ ​82611 - ABUS 4750S NR BK OE PRO AMPARO

SKÄRMAR  ​ ​ ​239FFWOBK0116  ​ ​MUDGUARD 28 - FRONT - 56mm - BLACK Gloss - (Gen3 and older)

​ ​ ​ ​239FRWOBK0044  ​ ​MUDGUARD 28 - REAR - 56mm - BLACK Gloss - (Gen3 and older)

​ ​ ​ ​203ZBK0008  ​ ​SKS GT-MANTIS - STABILIZER

​ ​ ​ ​239HF360BK0001  ​ ​MUDGUARD PART - FRONT/REAR STAY 360mm - Cut for wished length (no plastic end)

​ ​ ​ ​239ZBK0005  ​ ​MUDGUARD STAY PART - FRONT - Plastic fork-attachment part

​ ​ ​ ​239ZBK0006  ​ ​MUDGUARD STAY PART - REAR - Plastic fork-attachment part

CRANK  ​ ​ ​240K0001  ​ ​ ​CHAIN GUARD 44T - SKS Chainbow w end profile (amkit)

​ ​ ​ ​240ZBK0004  ​ ​CHAIN GUARD PART - FRONT SUPPORT - 44T/12mag - Ambassador AXS/HS

​ ​ ​ ​248B1355SI0001  ​ ​BOTTOM BRACKET - 135.5mm

​ ​ ​ ​242C44BK0003  ​ ​CRANK SET - 44T 1/8" - BLACK - For Nexus/Singlespeed

​ ​ ​ ​244CK114GY0001  ​ ​CHAIN 1/8" - KMC, Z510EPT, 114 links - AMBASSADOR F3/FLEXER F3

BROMS  ​ ​ ​SHIMANO  ​ ​ ​Shimano MT-200 - hydraulic brake (950mm)

​ ​ ​ ​SHIMANO  ​ ​ ​ROTOR FOR DISC BRAKE, SM-RT26, S 160MM, 6-BOLT TYPE, FOR RESIN PAD ONLY

VÄXEL  ​ ​ ​SHIMANO  ​ ​ ​SHIFT LEVER, SL-C3000-7, NEXUS, REVO SHIFTER - 7 SPEED

RAM  ​ ​ ​​​210ERZBK0002  ​ ​BATTERY PART - BOTTOM FRAME PLATE - STANDARD

​ ​ ​ ​210ERZBK0001  ​ ​BATTERY PART - FRAME PINS - STANDARD - Round plug

​ ​ ​ ​210ERZ346BK0001  ​ ​BATTERY PART - RAIL - Ambassador 28 HUB - 346mm
